Product Overview

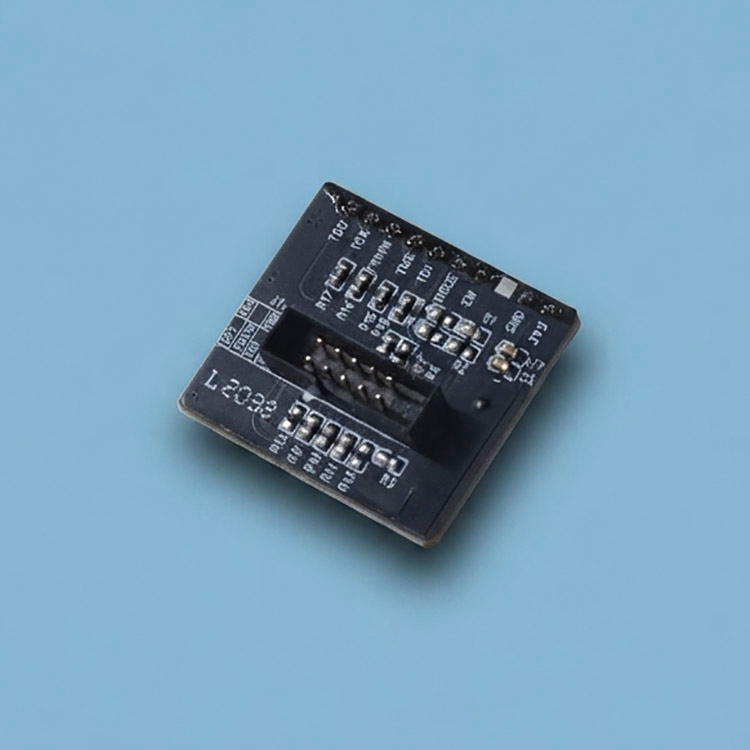

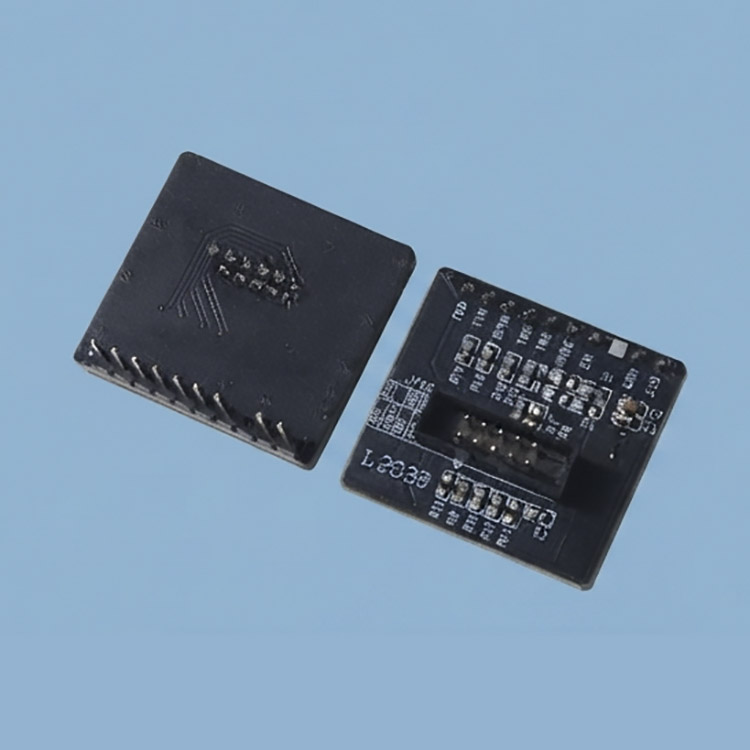

The Debug Expansion PCBA is an embedded development test board designed for MCU prototyping and debugging, helping engineers verify designs faster during development.
The board supports STM32 development boards, ESP32 dev kits, Arduino compatible modules, and Raspberry Pi expansion boards, with LED status indicators, push-button test modules, DIP switch configurations, and accessible test points for signal tracing. This makes it a practical companion for embedded development tool kits and electronics education.
Brightlx provides custom PCB design, prototype assembly, and full turnkey manufacturing covering SMT assembly, through-hole assembly, and functional testing on every outgoing board. From debug tooling for development teams to education kits for classrooms, we support your project from first sample to volume production.
Product Details
Key Features
Multiple status LEDs (various colors) for signal indication
Tactile push buttons for input testing
DIP switches for configuration and mode selection
Multiple test points for measurement probing
Easy pin header connection to dev boards
Compact practical design for lab use
Standard 2.54mm pin header interface
3.3V / 5V compatible operation
Technical Specifications
Status LEDs |
Multiple LEDs (red, green, yellow, blue configurable) |
Push Buttons |
Tactile push buttons (input testing) |
DIP Switches |
2-8 position DIP switch (configuration) |
Test Points |
Multiple test points for oscilloscope/multimeter |
Interface |
2.54mm pitch pin headers |
PCB Type |
FR-4, 2-layer |
Certifications |
CE, RoHS |
Main Components
LEDs (multiple colors), tactile push buttons, DIP switches, test point pads, pin headers, current-limiting resistors, pull-up/pull-down resistors, SMD passive components, FR-4 PCB
Why Choose Brightlx
Brightlx offers a true one-stop solution from custom LED lens design to PCBA assembly - you only need to work with a single supplier to complete the entire process from design to mass production.
PCBA Assembly Services
|
Custom LED Lens & Plastic Development
Optical design based on your target IES file Lens prototyping making Custom tooling manufacturing Mass production for custom LED optics Internal dark room and Goniophotometer |
