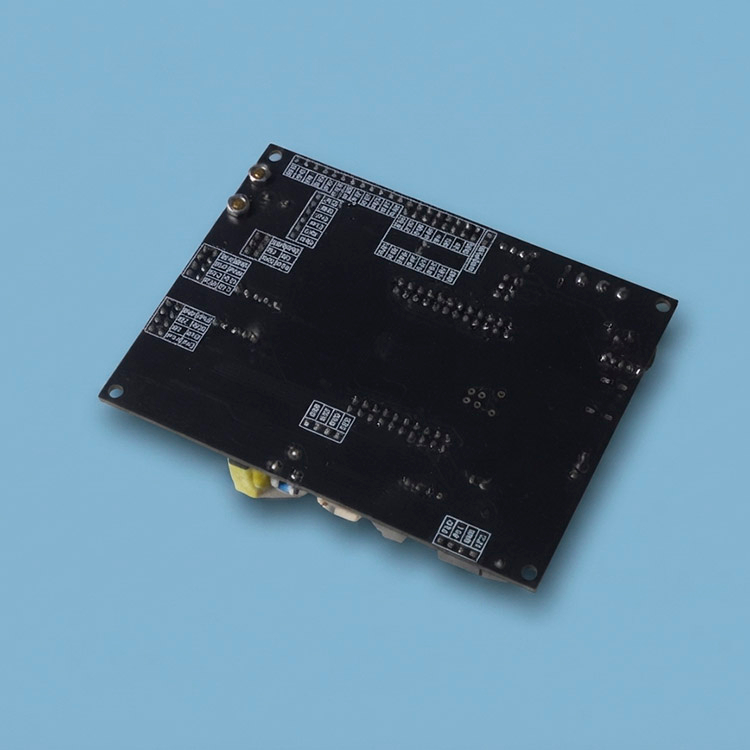

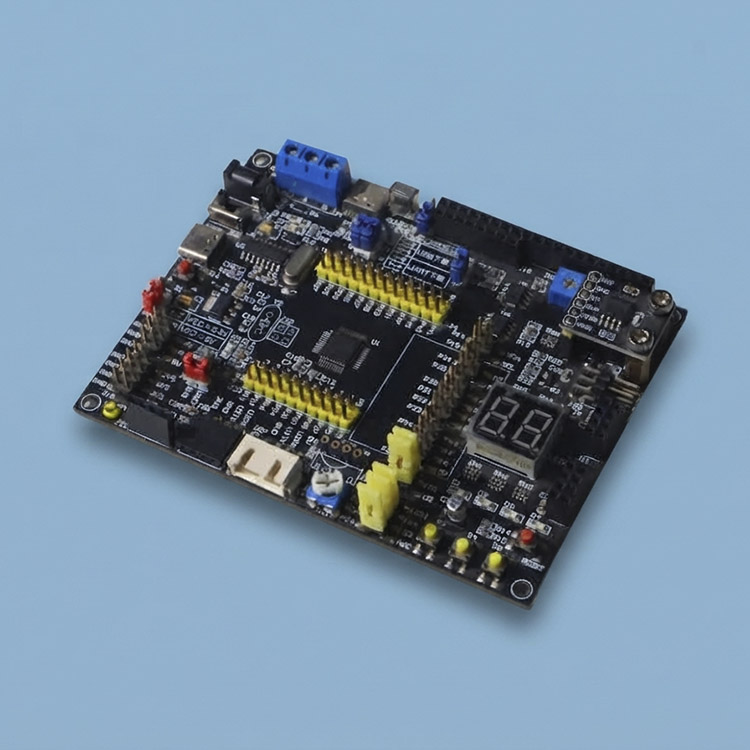

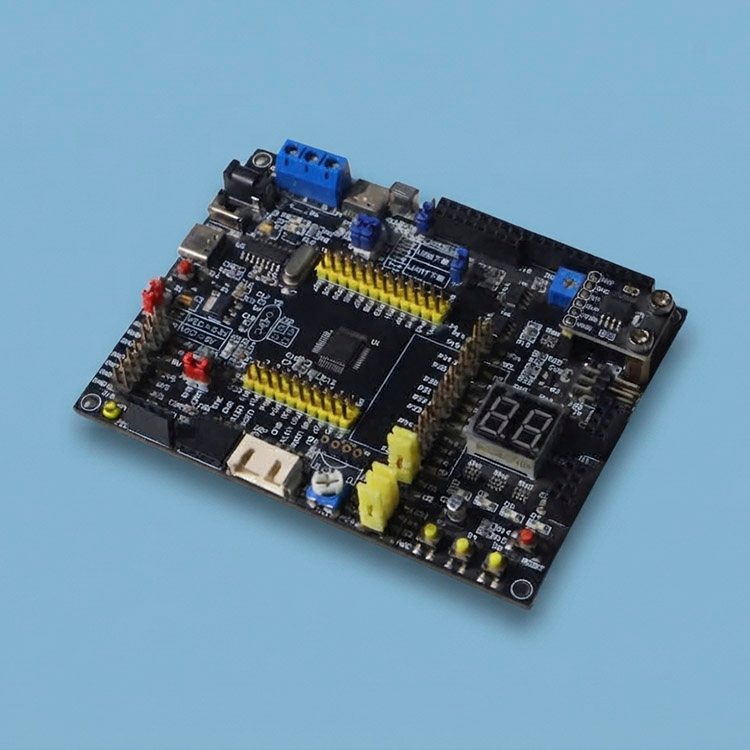

Product Overview
The Industrial Dev Board PCBA is a feature-rich MCU development kit based on the STM32 ARM Cortex-M microcontroller, built for industrial automation control and embedded system development.
The board features RS485/CAN interfaces, industrial I/O expansion, and a rugged design for harsh environments, making it a solid starting point for motor control development, industrial sensor interfaces, PLC prototyping, and factory automation MCU applications.
Brightlx provides custom PCB design, prototype SMT assembly, and full turnkey manufacturing with functional testing on every outgoing board. From industrial control boards and STM32 development modules to MCU prototype boards for embedded education, we support your project from first prototype to volume production.
Product Details
Key Features
STM32F4 / STM32H7 ARM Cortex-M4/M7 MCU
Rich industrial communication interfaces
Multiple analog input/output channels (ADC/DAC)
Industrial-grade components for reliability
Wide voltage power supply range
Rich expansion headers for prototyping
Up to 480MHz clock speed (H7 series)
Up to 2MB Flash + 1MB SRAM memory
Technical Specifications
MCU | STM32F4 / STM32H7 series (ARM Cortex-M4/M7) |
Clock Speed | Up to 480MHz (model dependent) |
Memory | Up to 2MB Flash + up to 1MB SRAM |
Communication | RS485, CAN, Ethernet, USB, UART, SPI, I2C |
Analog I/O | Multiple 12-bit ADC channels + DAC outputs |
PCB Type | FR-4, 4-layer, industrial grade |
Certifications | CE, RoHS, FCC |
Main Components
STM32 MCU, SPI Flash, Ethernet PHY (LAN8720 or similar), RS485 transceiver (MAX485), CAN transceiver (TJA1050), USB controller, crystal oscillator, pin headers, USB connector, DC barrel jack, voltage regulators, status LEDs, reset/user buttons
