Product Overview

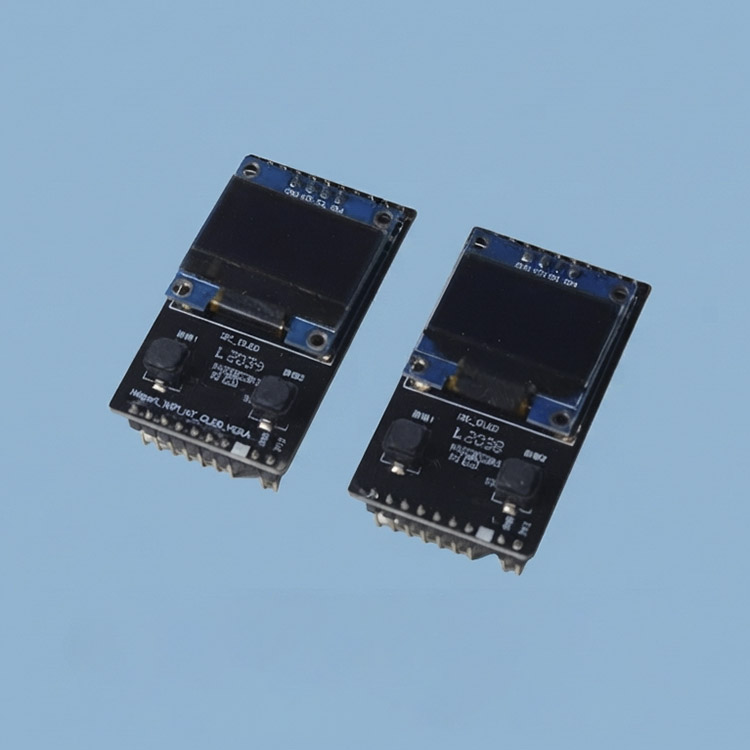

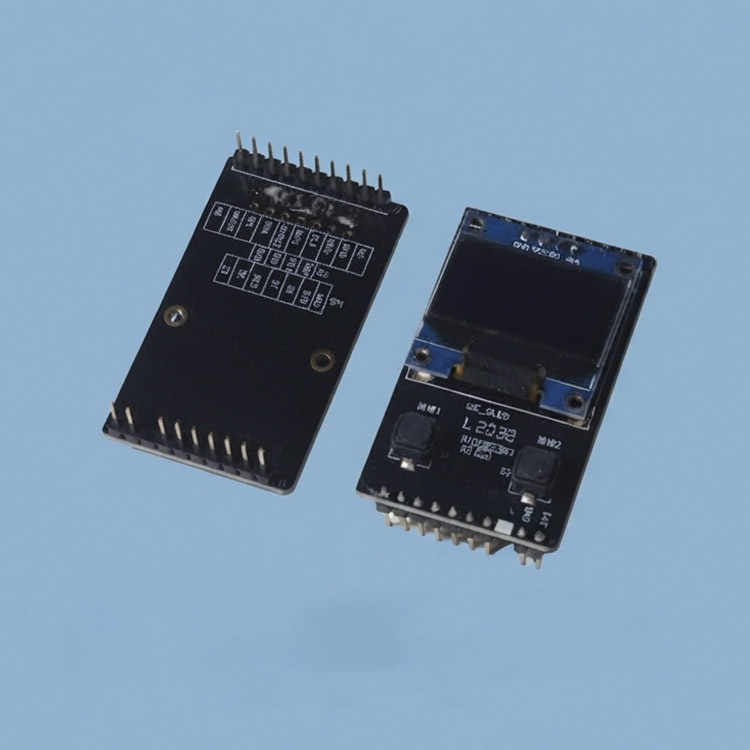

A display project often starts with a maker board on the bench — and succeeds with a manufacturer who can scale it. The Display Expansion PCBA is a versatile display driver board supporting TFT LCD, OLED, and e-paper display modules, with SPI/I2C display expansion modules designed to work with Arduino, Raspberry Pi, ESP32, and other mainstream developer platforms — so the same design that ran your prototype scales straight into production.
As an experienced custom display PCBA manufacturer, Brightlx produces display interface boards, LCD controller PCBA modules, and touch screen driver boards for consumer electronics and smart home applications. Signaling support covers RGB interface, MIPI DSI, and LVDS, with resolutions from small OLED segments to 1080p panels. Display formats include round TFT, bar-type, and wide-angle strips for modern smart home panel designs. These boards are ideal for smart home display boards, IoT HMI modules with capacitive touch, audio spectrum analyzer boards and VU meter displays, embedded project display panels, and thermostat and wall control panel displays.
Brightlx supports you from custom PCB design and rapid prototyping through custom PCB assembly and full turnkey manufacturing with customized PCBA solutions, OEM PCBA services, SMT assembly, and functional testing including display aging tests on every outgoing board.
Product Details
Key Features
Supports LCD and OLED display panels (various sizes)
Capacitive or resistive touch screen controller
LED backlight driver with dimming control
Multiple display interfaces (SPI/I2C/RGB/MIPI)
Brightness adjustment capability
Compact modular design for easy integration
High resolution support (up to 1920x1080)
Low power consumption for battery devices
Technical Specifications
Display Type | LCD / OLED (various sizes supported) |
Touch Interface | Capacitive / resistive touch controller (optional) |
Display Interface | SPI, I2C, RGB, MIPI (configurable) |
Backlight | LED backlight driver with dimming control |
Max Resolution | Up to 1920x1080 (panel dependent) |
PCB Type | FR-4, 2-4 layer |
Certifications | CE, RoHS, FCC |
Main Components
Display driver IC, touch controller IC (capacitive/resistive), backlight LED driver, FPC connector, voltage regulator, SMD passive components, FR-4 PCB, level shifters
