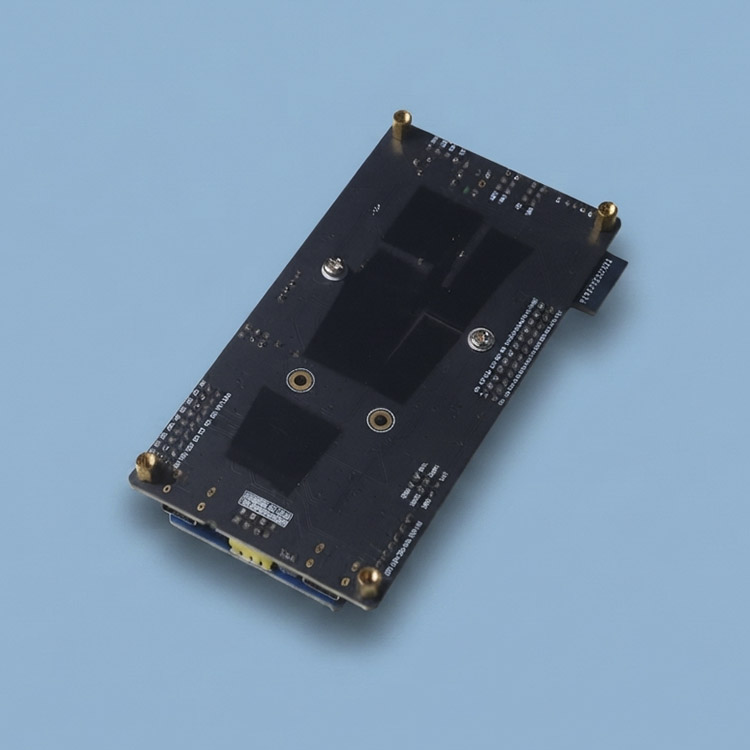

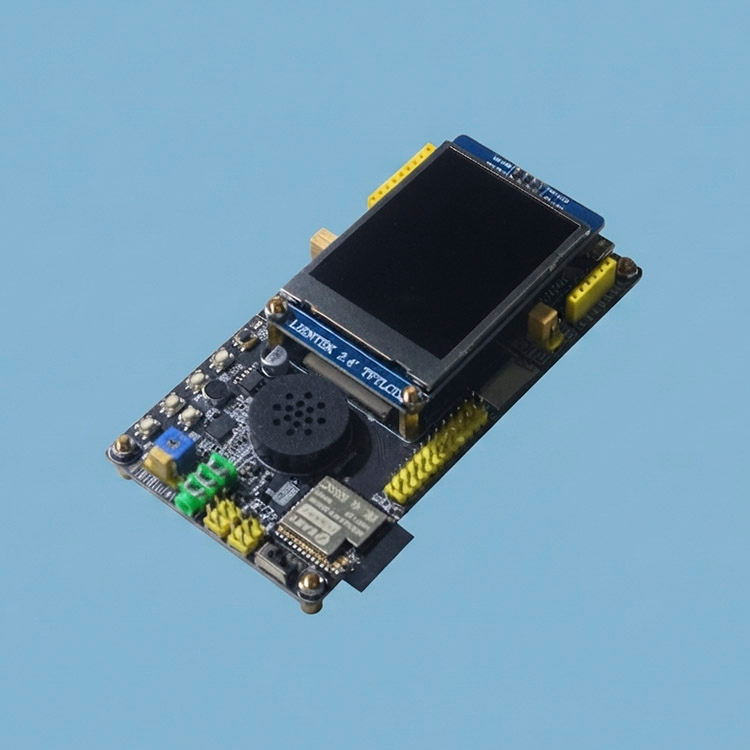

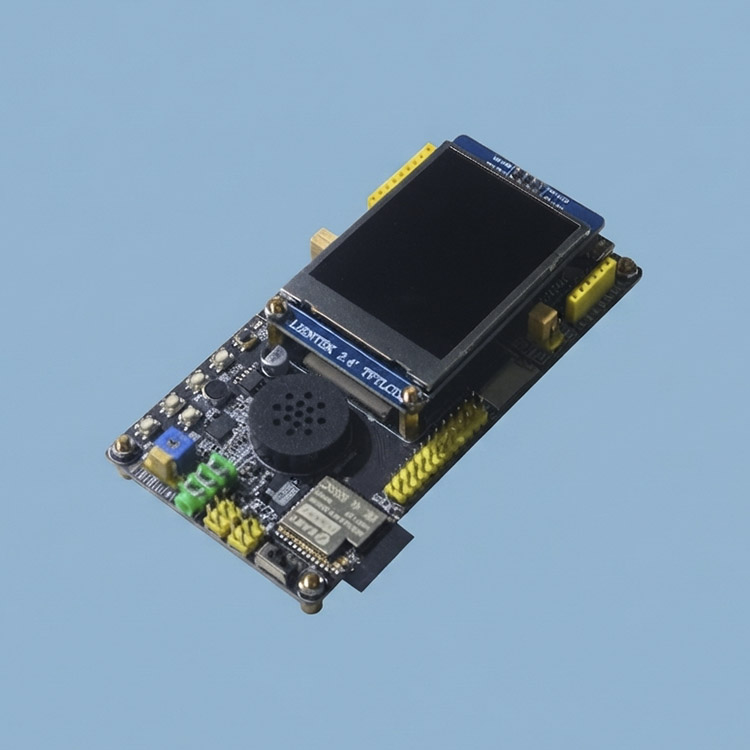

Product Overview
Built on the ESP32-S3, this Smart Home Controller PCBA integrates dual-core processing, WiFi & Bluetooth (BLE 5.0) dual-mode wireless, and rich I/O expansion into one compact IoT control board. Designed for Matter-ready smart home automation, it works with popular ecosystems including Alexa, Google Home, and Home Assistant, and supports MQTT and Zigbee gateway integration for flexible IoT deployments.
As a custom smart home PCBA manufacturer, Brightlx develops and produces ESP32 controller boards, WiFi IoT control modules, BLE mesh boards, and smart device PCBA solutions for residential and commercial IoT projects. Typical applications cover smart home hub boards, WiFi relay control modules, IoT sensor gateway boards, smart switch PCBA modules, smart plug boards, and energy monitoring modules.
From custom PCB design and rapid prototyping to high-volume PCB assembly, we provide turnkey OEM/ODM PCBA services.
Product Details
Key Features
ESP32-S3 dual-core Xtensa LX7 processor (up to 240MHz)
WiFi 802.11 b/g/n + Bluetooth 5.0 (LE) dual mode
Rich GPIO and peripheral interfaces (up to 45 pins)
Compact modular design for easy integration
Multiple low power consumption modes available
OTA (Over-the-Air) firmware upgrade support
512KB SRAM + 8MB Flash (configurable)
UART, SPI, I2C, I2S, PWM, ADC, DAC interfaces
Technical Specifications
Processor | ESP32-S3 (dual-core Xtensa LX7, up to 240MHz) |
Wireless | WiFi 802.11 b/g/n + Bluetooth 5.0 LE |
Memory | 512KB SRAM + 8MB Flash (configurable) |
GPIO Pins | Up to 45 multiplexed GPIO pins |
Peripheral Interfaces | UART, SPI, I2C, I2S, PWM, ADC, DAC |
PCB Type | FR-4, 4-layer |
Certifications | CE, RoHS, FCC, RED |
Main Components
ESP32-S3 SoC chip, SPI Flash memory, crystal oscillator, PCB/external antenna, voltage regulator, SMD passive components, pin headers (optional), USB connector (optional)
