Product Overview

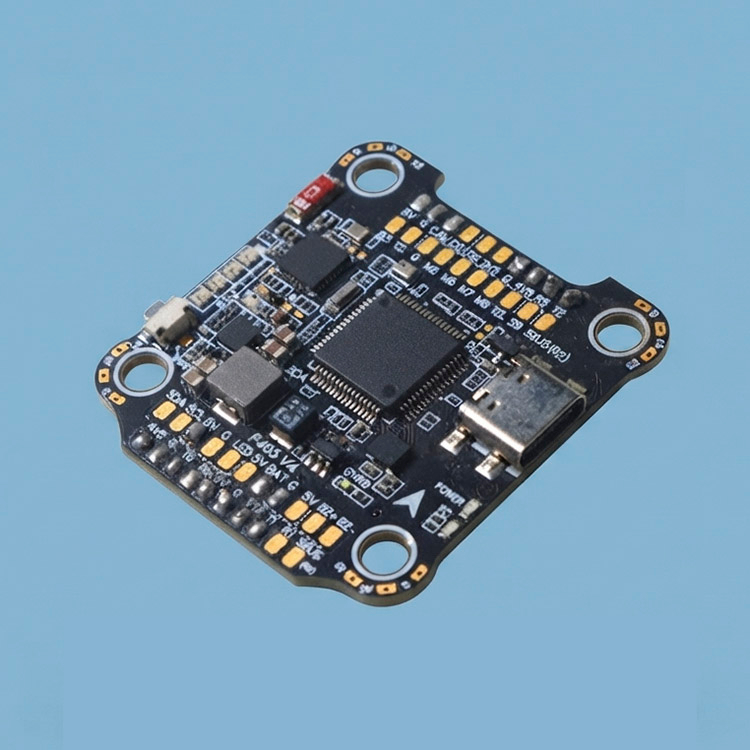

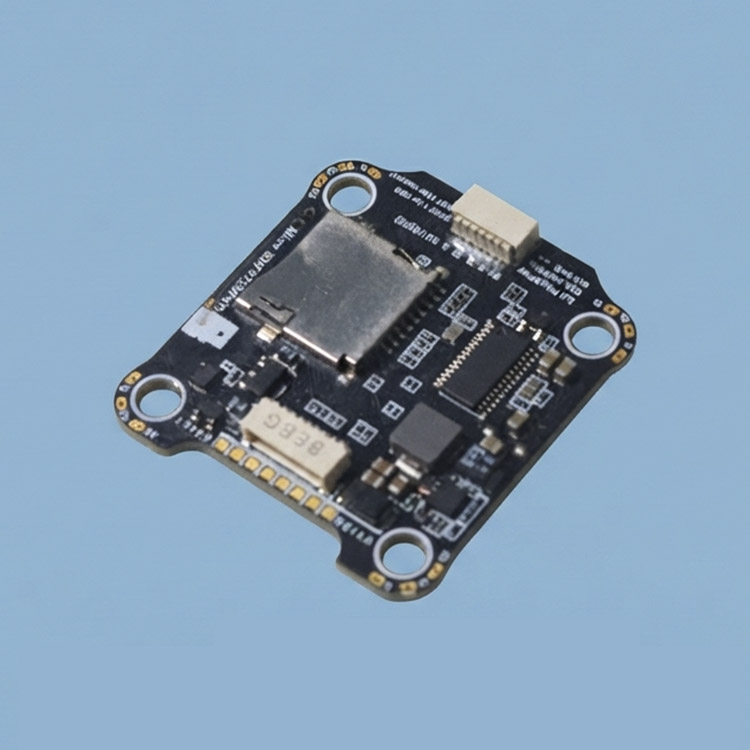

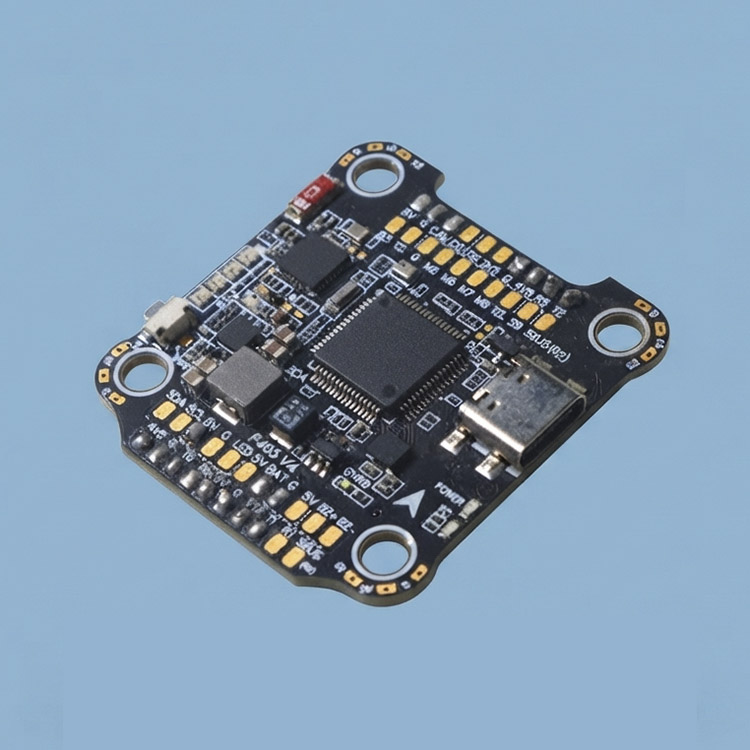

The Drone Flight Controller Board PCBA is an advanced UAV flight control module designed for multi-rotor drones and FPV racing, built for stable flight performance in demanding aerial applications.
The board features a 6-axis gyro/accelerometer, barometric altitude sensing, and multiple PWM/S.Bus outputs, with companion modules including GPS positioning boards, OSD video overlay modules, and ESC interface boards for complete drone and FPV system builds.
Brightlx is an ISO 9001 certified PCBA manufacturer with strict quality control throughout production. From custom PCB design for a new flight controller and prototype assembly to full turnkey manufacturing, we support drone brands, FPV teams, and UAV integrators from first sample to volume production.
Product Details
Key Features
STM32F4 / F7 high-performance ARM Cortex MCU
6-axis IMU (gyroscope + accelerometer)
Digital barometer for altitude hold
GPS/GLONASS/BeiDou module support
Multiple flight modes (Stabilize, Alt Hold, Pos Hold, Auto)
4-8 motor ESC output channels
Vibration-damping design for stable sensing
Support for various drone configurations (X4, X6, X8, etc.)
Technical Specifications
MCU | STM32F4 / STM32F7 series (ARM Cortex-M4/M7) |
IMU Sensor | 6-axis gyroscope + accelerometer (ICM/MPU series) |
Barometer | Digital pressure sensor (MS5611 / BMP280) |
GPS Support | GPS/GLONASS/BeiDou module compatible |
ESC Outputs | 4-8 channels (motor control signals) |
PCB Type | FR-4, 4-layer, vibration-tolerant design |
Certifications | CE, RoHS, FCC |
Main Components
STM32 MCU, IMU (ICM20602/MPU6000 series), barometer (MS5611/BMP280), magnetometer (optional), GPS module connector, ESC output connectors, USB connector, voltage regulator, vibration-damping mounts, SD card slot (blackbox), SMD passive components
