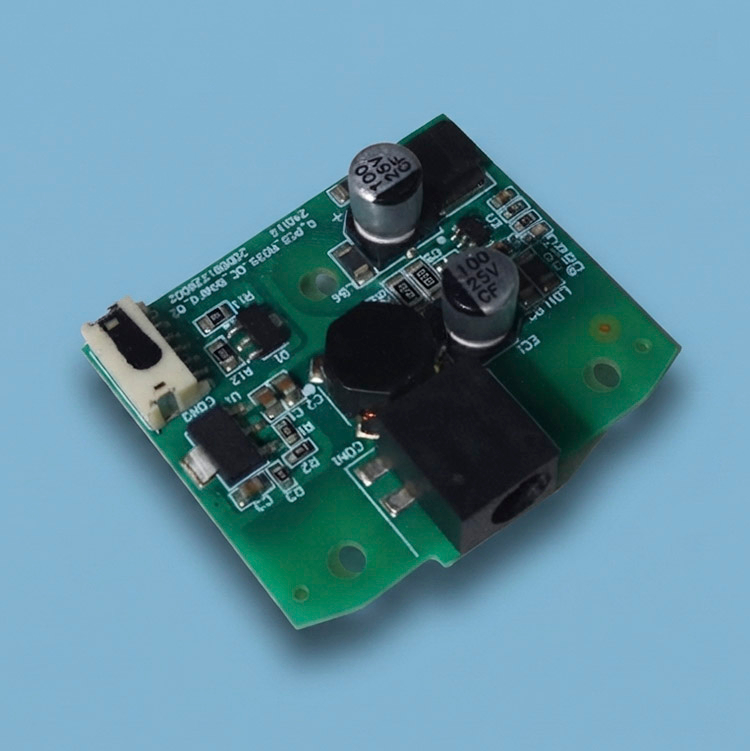

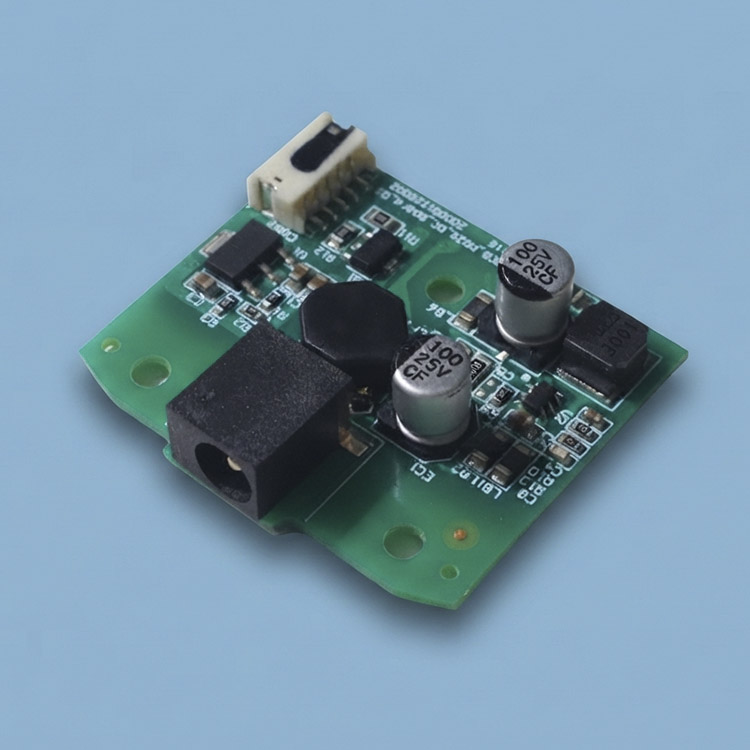

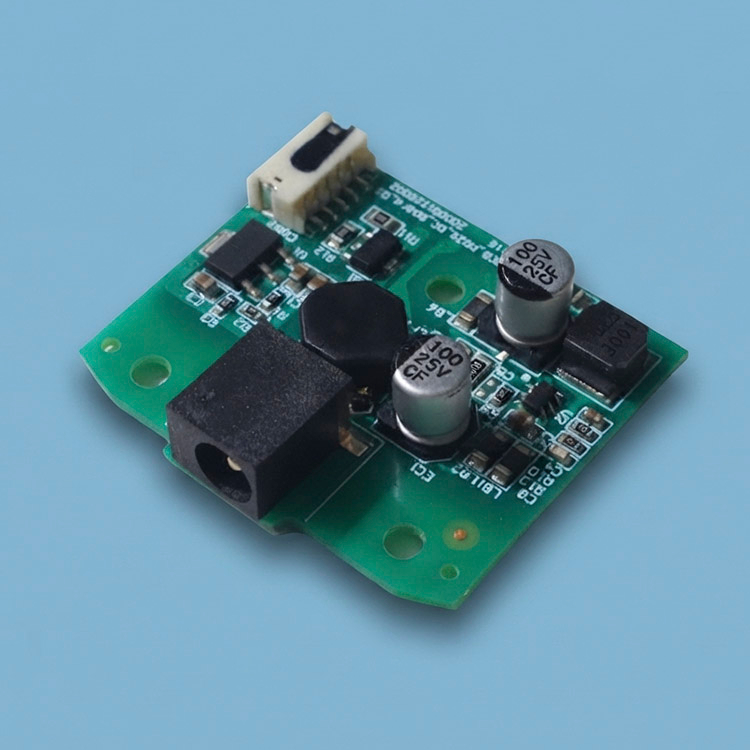

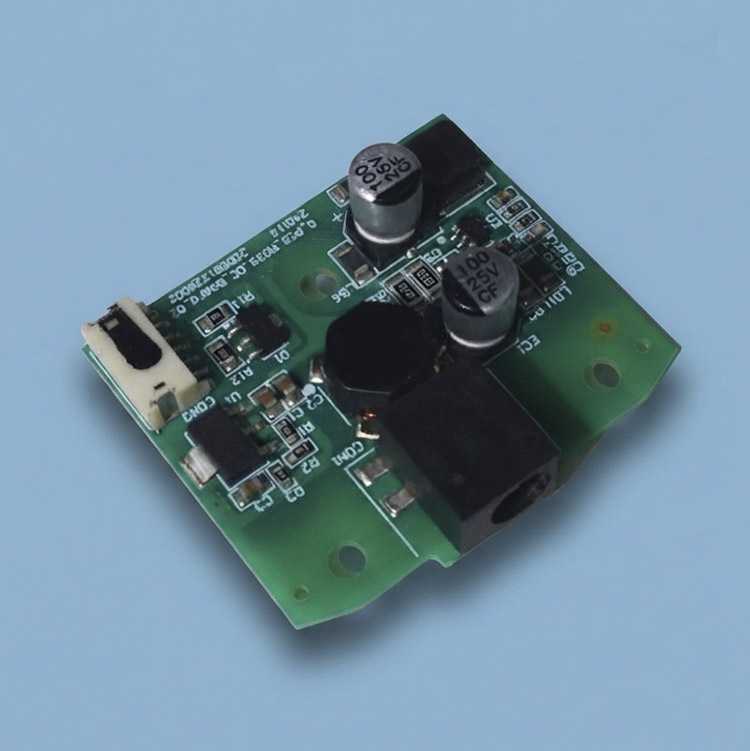

Product Overview
The LED Driver Board Module is a purpose-built constant current LED driver board for commercial and residential LED lighting fixtures. As a specialized PCBA manufacturing company, Brightlx produces high-quality LED switching power supply PCBA boards, constant current driver modules, LED fixture power boards, and isolated LED driver modules for indoor and outdoor LED lighting. Brightlx offers custom PCB development for new LED drivers, custom PCB assembly for mass production, and comprehensive PCBA manufacturing services. Our LED driver PCBA products feature high PF, low THD, and flicker-free output, making them ideal for panel light driver boards, ceiling light power modules, tube light LED driver boards, and downlight power supply PCBA modules.
Product Details
Key Features
Precision constant current LED drive output
High power factor (PF>0.9) for commercial applications
High efficiency (>88%) and long lifespan design
Dimming support: 0-10V / PWM / DALI (optional)
Compact form factor for fixture integration
Wide input voltage range (100-277V AC)
Comprehensive protection features
Surge protection for outdoor use
Technical Specifications
Input Voltage | 100-277V AC (50/60Hz) wide range |
Output Type | Constant current (configurable current) |
Output Power | 20-200W (configurable per fixture) |
Power Factor | >0.9 (high PF version, PF>0.95 available) |
Efficiency | >88% typical |
PCB Type | FR-4, 2-layer |
Certifications | CE, RoHS, FCC, UL, DLC |
Main Components
PFC controller IC, PWM controller IC, power MOSFET, high-frequency transformer, optocoupler, diode bridge, output rectifier (diode/MOSFET), filter capacitors, current sense resistor, surge protection components
Why Choose Brightlx
PCBA Assembly Services | Custom LED Lens & Plastic Development Optical design based on your target IES file Lens prototyping making Custom tooling manufacturing Mass production for custom LED optics Internal dark room and Goniophotometer |
