Product Overview

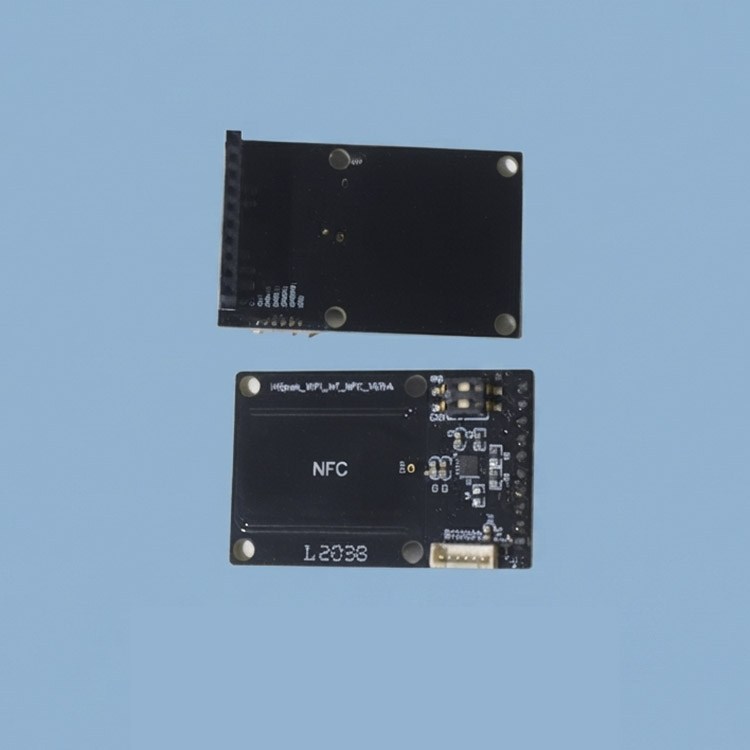

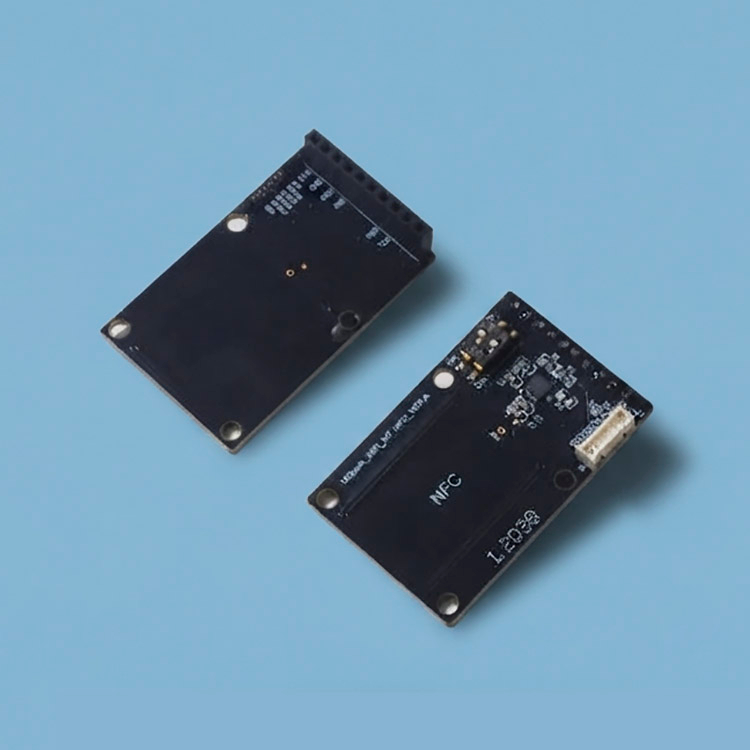

The IoT Gateway Mainboard PCBA (WiFi+NFC) is an innovative dual wireless IoT board combining WiFi connectivity with NFC authentication, turning a simple tap into access granted, payment confirmed, or device paired.
Brightlx produces dual-mode IoT gateway PCBA boards, WiFi+NFC controller modules, smart access boards, and contactless payment modules for smart home and commercial IoT applications. Built on the ESP32 platform with NFC readers supporting ISO 14443A/B cards (MIFARE Classic, Ultralight, and NTAG tags), these boards feature secure element support for AES-128 encryption, Wiegand and RS485 interfaces for legacy access control integration, and on-board relay control for electric strikes and door locks. Deep-sleep operation and OTA firmware updates make them ideal for smart access control boards, IoT payment modules, NFC door lock boards, and smart retail gateway boards.
From custom PCB design for a new dual-mode gateway, through custom PCB assembly for prototype production, to full turnkey manufacturing, Brightlx provides customized PCBA solutions, OEM services, SMT assembly, and 100% functional testing with NFC read range verification on every outgoing board. We are your one-stop partner for IoT gateway boards and NFC modules.
Product Details
Key Features
WiFi + NFC dual wireless communication
NFC PCB antenna for card/tag reading
2.4GHz WiFi PCB antenna for IoT connectivity
6-pin JST connector for external connection
S1 2-position DIP switch for configuration
Quick NFC device pairing capability
NFC identity recognition and authentication
HiSpark WiFi IoT platform compatibility
Technical Specifications
Wireless 1 | WiFi 802.11 b/g/n (2.4GHz) |
Wireless 2 | NFC (13.56MHz, ISO14443A/B) |
Antennas | PCB antennas (WiFi + NFC integrated) |
Connector | 6-pin JST connector |
Configuration | DIP switch (2-position) |
PCB Type | FR-4, 2-layer |
Certifications | CE, RoHS |
Main Components
WiFi SoC, NFC reader IC (PN532/RC522 or similar), PCB antennas (WiFi + NFC), JST connector, DIP switch, voltage regulator, SMD passive components, status LEDs, FR-4 PCB
