Product Overview

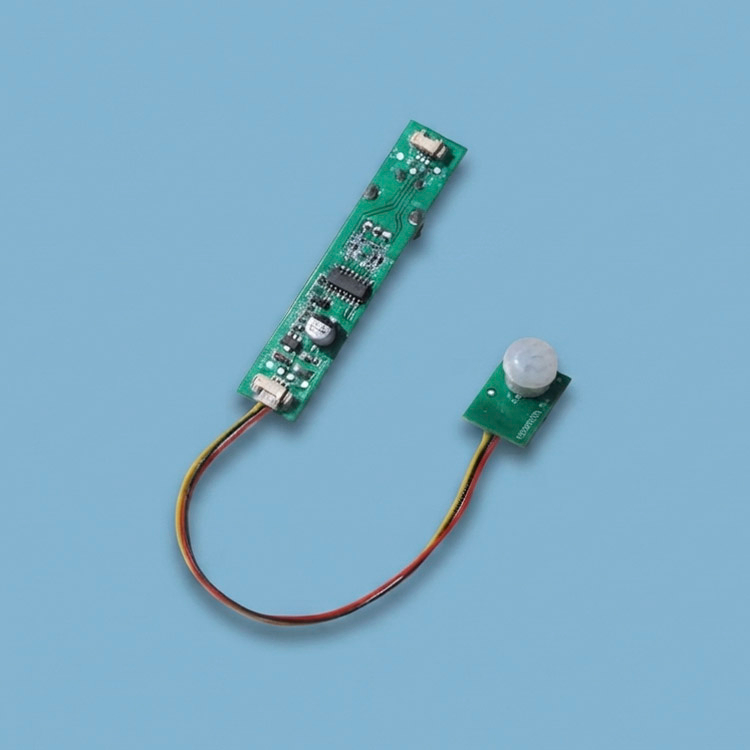

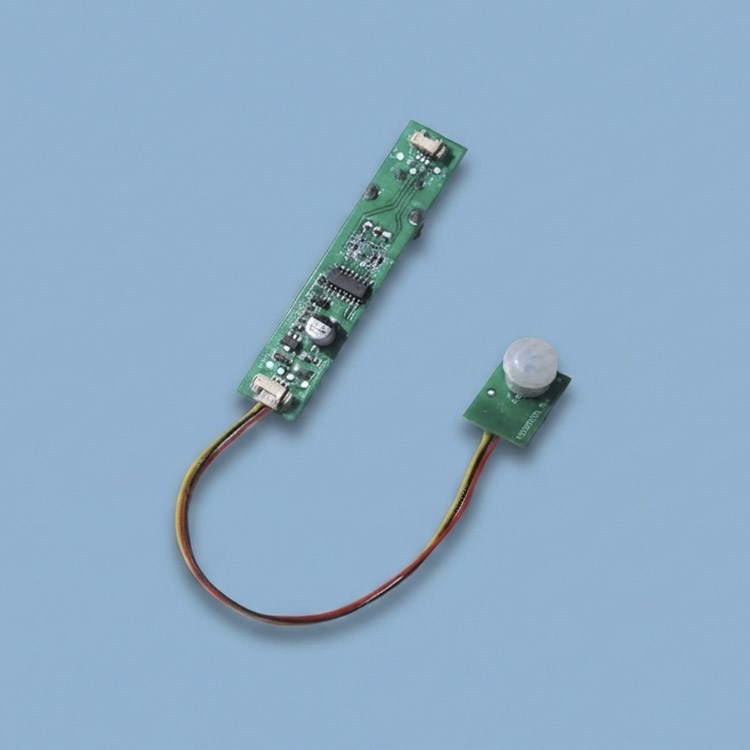

In PIR sensing, detection performance is decided by optics first. The PIR Motion Sensor Module PCBA pairs a reliable infrared motion detector board with in-house Fresnel lens design, giving our motion-activated light boards wider detection angles, longer range, and more stable performance than generic modules. Combined with adjustable sensitivity, time delay control, and microamp-level standby current, it fits everything from corridor and bathroom lighting to security motion detection.
As a custom PIR sensor manufacturer, Brightlx produces PIR motion sensor PCBA boards, infrared detector modules, motion-activated light boards, and occupancy sensor modules for smart home and commercial lighting. Options include dusk-to-dawn photocell versions for outdoor wall lights and flood lights, 12V/24V DC and mains-powered versions, and IP-rated designs for damp locations, which are ideal for motion sensor light boards, PIR switch modules, occupancy sensor PCBA boards, and battery-powered motion detector modules.
Whether you require custom PCB design for a new PIR sensor product, custom PCB assembly for prototype production, or full turnkey manufacturing, we provide customized PCBA solutions, OEM PCBA services, SMT assembly, and functional testing, with free samples for qualified projects. From optical design to SMT assembly, our 16 years of lens expertise make Brightlx your one-stop PCBA manufacturer for motion sensor modules.ED lens design experience, Brightlx offers one-stop PCBA manufacturing from optical design to SMT assembly.
Product Details
Key Features
Passive infrared (PIR) motion detection technology
Adjustable detection sensitivity via potentiometer
Adjustable time delay (5 seconds to 5 minutes)
Built-in ambient light threshold (daylight sensor)
Automatic on/off control for energy savings
Low power consumption for standby efficiency
Compact design for easy installation
Wide operating voltage range (3.3-12V)
Technical Specifications
Input Voltage | 3.3-12V DC wide range |
Detection Method | Passive infrared (PIR) pyroelectric sensor |
Detection Range | 3-7 meters (adjustable sensitivity) |
Delay Time | 5 seconds - 5 minutes (adjustable) |
Light Sensor | Built-in ambient light threshold sensor |
PCB Type | FR-4, 2-layer |
Certifications | CE, RoHS, FCC |
Main Components
PIR pyroelectric sensor, Fresnel lens, signal conditioning IC, MCU controller, potentiometers (adjustment), SMD passive components, output driver circuit, voltage regulator
Why Choose Brightlx
PCBA Assembly Services | Custom LED Lens & Plastic Development Optical design based on your target IES file Lens prototyping making Custom tooling manufacturing Mass production for custom LED optics Internal dark room and Goniophotometer |
