Product Overview

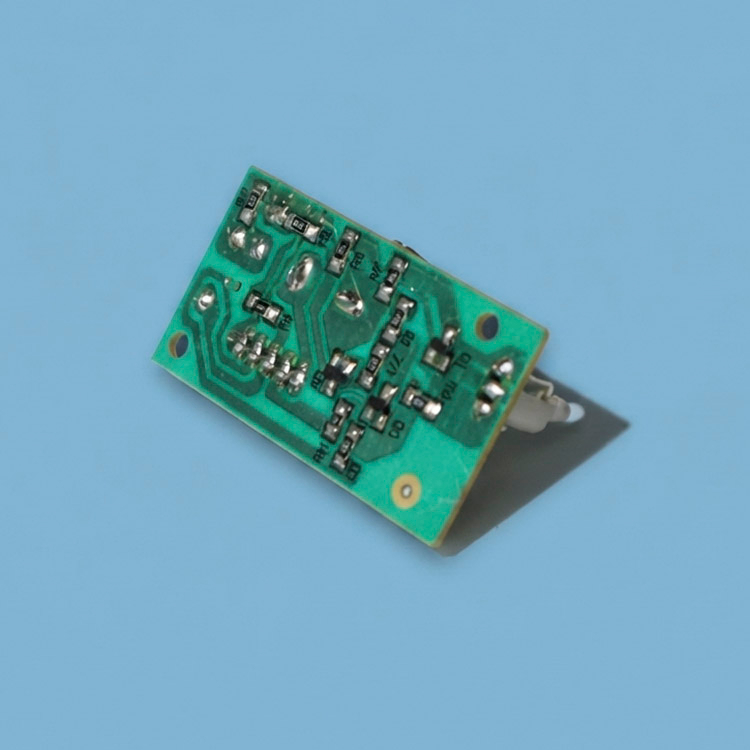

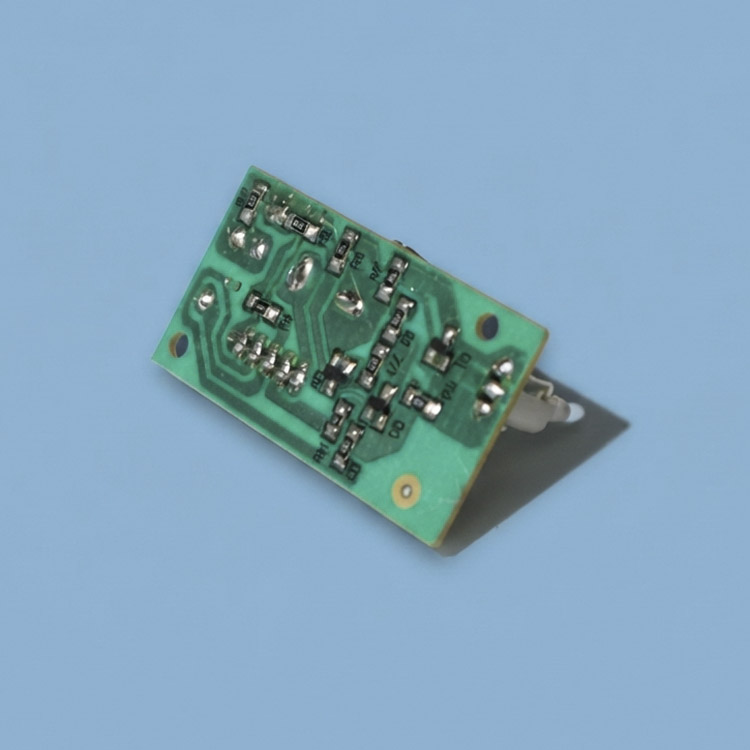

Behind every premium touch lamp, LED mirror, and cabinet light is a capacitive touch board that decides how the product feels. This capacitive touch control PCBA is a high-performance touch-sensing LED dimming module designed for various modern lighting applications, including those featuring glass, acrylic, or wood panels.
As an experienced custom PCBA manufacturer, Brightlx delivers touch control board PCBA solutions covering multi-channel touch sensor boards, capacitive touch switch modules, and touch dimmer LED modules for smart home and commercial lighting. Design features include adjustable sensitivity for different overlay thicknesses, stepless dimming, color temperature control (CCT tunable white), multi-channel control for RGB and tunable lamps, and low-power touch wake-up for battery models. Typical applications: touch table lamp boards, LED mirror touch controller boards, smart bathroom mirror touch modules with anti-fog and light memory, cabinet touch light boards, vanity mirror touch sensor modules, and touch wall panel switches for hotel projects.
From custom PCB design for a new touch sensor product, custom PCB assembly for prototype production, to full turnkey manufacturing, we provide customized PCBA solutions, OEM PCBA services, SMT assembly, and functional testing with free samples for qualified projects. With 16 years spanning LED lens design, PCB manufacturing, and SMT to final product assembly, Brightlx is the one-stop manufacturing partner that takes your touch sensor and LED dimmer projects to market faster. Contact us today to discuss your design.
Product Details
Key Features
Multi-channel capacitive touch sensing (3-8 channels)
Touch on/off + stepless dimming control
Color temperature adjustment capability
High sensitivity and reliable touch detection
Water-resistant surface operation support
Low power consumption for energy efficiency
Adjustable touch sensitivity settings
<100ms fast response time
Technical Specifications
Input Voltage | 5-24V DC wide range |
Touch Channels | 3-8 channels (configurable per requirement) |
Control Functions | On/off, dimming, CCT, scene modes |
Touch Sensitivity | Adjustable via firmware/resistor |
Response Time | Less than 100 milliseconds |
PCB Type | FR-4, 2-layer |
Certifications | CE, RoHS, FCC |
Main Components
Touch sensor IC, MCU controller, touch spring electrodes, LED driver circuit, SMD passive components, sensitivity adjustment circuit, FR-4 PCB
Why Choose Brightlx
Brightlx offers a true one-stop solution from custom LED lens design to PCBA assembly - you only need to work with a single supplier to complete the entire process from design to mass production.
PCBA Assembly Services | Custom LED Lens & Plastic Development Optical design based on your target IES file Lens prototyping making Custom tooling manufacturing Mass production for custom LED optics Internal dark room and Goniophotometer |
