Product Overview

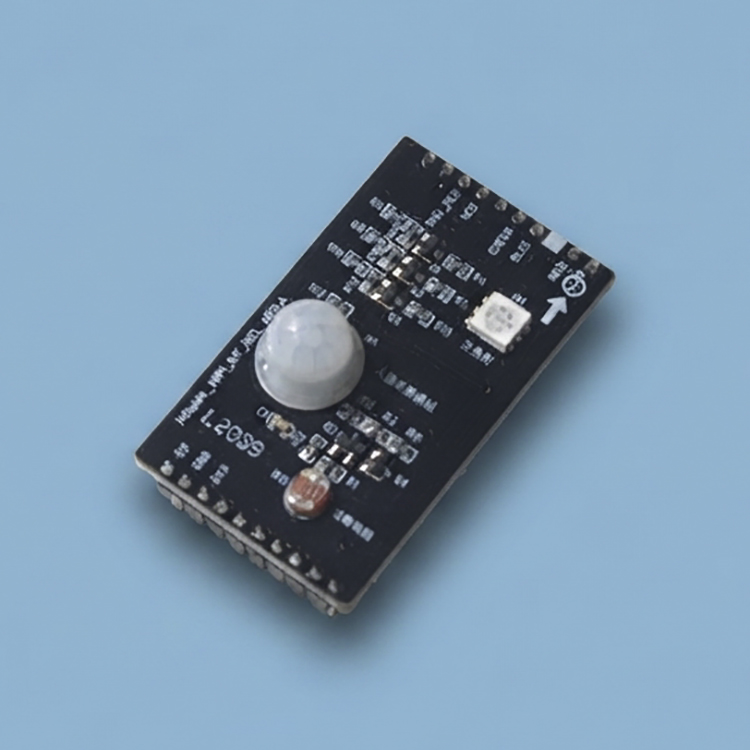

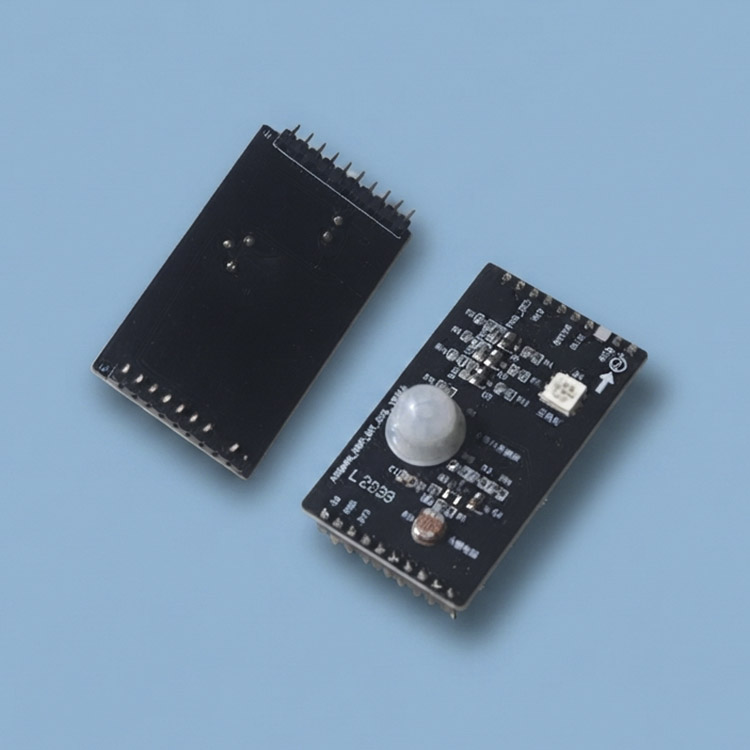

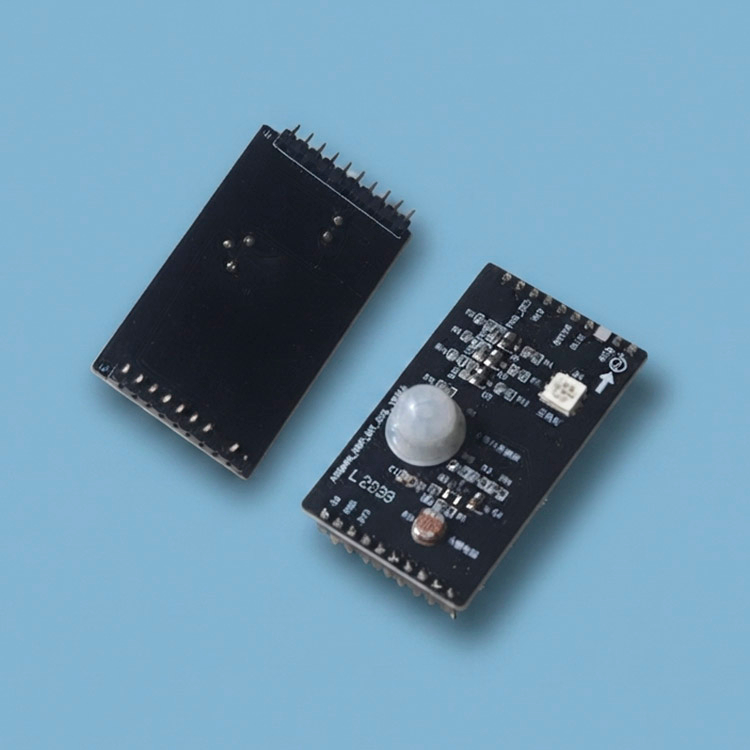

Occupancy-based lighting starts here. The WiFi PIR Light Sensor PCBA combines three sensing functions on one intelligent IoT motion sensor board PIR detection, ambient light sensing, and WiFi connectivity, enabling lights to turn on, dim, or shut off automatically based on presence and daylight levels.
As a smart lighting sensor manufacturer, Brightlx produces WiFi PIR sensor PCBA boards, ambient light detection modules, smart motion sensor boards, and IoT lighting control modules for smart home and commercial applications. Each board features ESP8266 WiFi connectivity (ESP32-S3 upgradeable), light-adaptive dimming with daylight harvesting, low-power design for long battery operation, and configurable occupancy / vacancy sensing modes. Typical uses include wireless occupancy detection modules, IoT light sensor boards, smart lighting control modules, corridor and cabinet lighting sensors, and security motion detection.
From custom PCB design for a new wireless sensor to custom PCB assembly for production runs, we offer customized PCBA solutions, OEM PCBA services, SMT assembly, and functional testing, with free samples for qualified projects. Backed by 16 years of LED optics and PCBA assembly experience, Brightlx is your one-stop manufacturer for IoT sensor boards and smart lighting modules.
Product Details
Key Features
WiFi 802.11 b/g/n (2.4GHz) connectivity
PIR infrared motion detection capability
Ambient light sensor for brightness detection
Smartphone app remote control and monitoring
Timer and schedule automation functions
Remote status monitoring and notifications
Integration with smart home platforms
Manual + app + automation control modes
Technical Specifications
Input Voltage | 5-12V DC |
Wireless Connectivity | WiFi 802.11 b/g/n (2.4GHz) |
Motion Sensor | PIR passive infrared detection |
Light Sensor | Ambient brightness (lux) detection |
Control Modes | App control + manual + automation |
PCB Type | FR-4, 2-layer |
Certifications | CE, RoHS, FCC |
Main Components
ESP8266/ESP32 WiFi MCU, PIR pyroelectric sensor, ambient light sensor, relay/MOSFET output, PCB antenna, SMD passive components, voltage regulator, button/LED indicators
